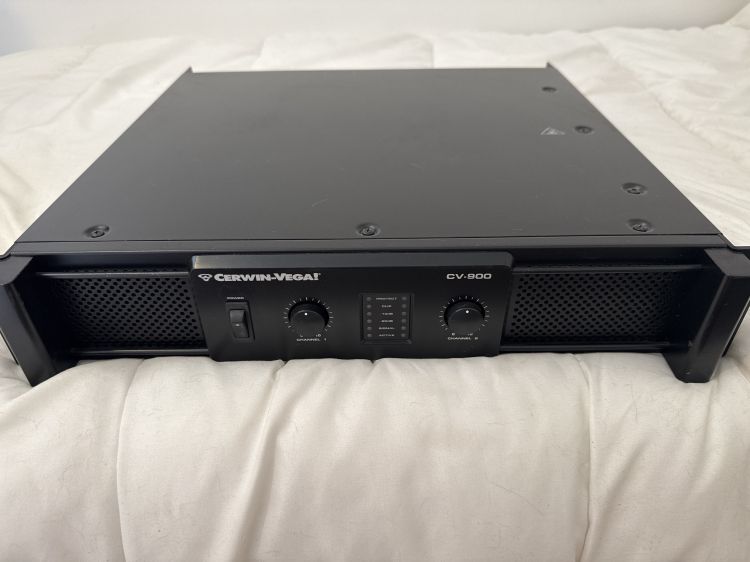

Etapa de potencia Cerwin Vega CV-900

Main Technical Features Its internal architecture uses a Class AB circuit with a large toroidal transformer, which guarantees a very clean but punchy sound. Their real powers (RMS) depending on the resistance of the speakers are the following: Stereo Mode (2 channels):  At 8 Ohms: \bm{2 \times 210\text{ W}} RMS (Ideal for your JBL EON 305 speakers, since these tolerate 250W RMS at 8 Ohms).  At 4 Ohms: \bm{2 \times 320\text{ W}} RMS.  At 2 Ohms: \bm{2 \times 420\text{ W}} RMS.  Bridged Mode (Bridged Mono - 1 single channel summed): At 8 Ohms: \bm{650\text{ W}} RMS.  At 4 Ohms: \bm{845\text{ W}} RMS.  Connections and extras:  Inputs: Combo Connectors that accept both XLR (Canon) and balanced 1/4" TRS Jack.  Outputs: Traditional screw terminals and SpeakON NL-4 quick connectors with safety lock.  Filters and protection: It has a rear switch to activate a high-pass filter (Low Cut) at 40 Hz (to eliminate noise and protect the speakers), independent limiter per channel to avoid distortion peaks and variable forced ventilation from front to back.  Weight: It is a heavy device due to its traditional analog electronics; around 12.6 kg.
